Case Study: 9.12kW Solar PV & 20kWh Battery Storage Installation – Melton Mowbray, Leicestershire
Project Overview
This residential solar installation was designed to help the homeowner maximise their use of renewable energy while significantly reducing their reliance on grid electricity. By combining a high-output solar array with substantial battery storage, the system enables excess energy generated during the day to be stored and used when it's needed most.
Optimum Electrics designed and installed a bespoke 9.12kW Solar PV and Battery Storage system, utilising AIKO's latest Generation 3 solar panels and the intelligent Sigenergy home energy platform. The result is a future-ready renewable energy solution that delivers excellent performance, greater energy independence and long-term savings.
System Overview
Project Detail | Specification |
System Size | 9.12kW |
Solar Panels | 19 × AIKO Neostar 3S Generation 3 480W All Black Solar PV Panels |
Inverter | 1 × 12kW Sigenergy Single Phase Hybrid Inverter (8kW Export Limit) |
Battery Storage | 2 × 10kWh Sigenergy Batteries (20kWh Total Capacity) |
Roof Mounting | All Black Fastensol Solar Roof Mounting Kit |
Bird Protection | All Black Bird Protection Meshing |
Access Equipment | Scaffolding |
Understanding the Customer's Requirements
The homeowner wanted a renewable energy system capable of generating significant amounts of electricity while providing enough battery capacity to maximise self-consumption throughout the day and into the evening. The system was designed to make the best use of the available roof space, combining premium all-black components to complement the appearance of the property while creating a future-proof solution for changing energy demands.
Due to the property's electrical supply, the installation was designed with an 8kW export limit, ensuring compliance with Distribution Network Operator (DNO) requirements while allowing the homeowner to benefit from the system's full generating potential.
Installation Process
Following a detailed site survey and bespoke system design, our installation team built scaffolding before installing 19 AIKO Neostar 3S Generation 3 all-black solar panels using the Fastensol all-black roof mounting system. The panels were carefully positioned to maximise energy generation while maintaining a clean, symmetrical finish across the roof.

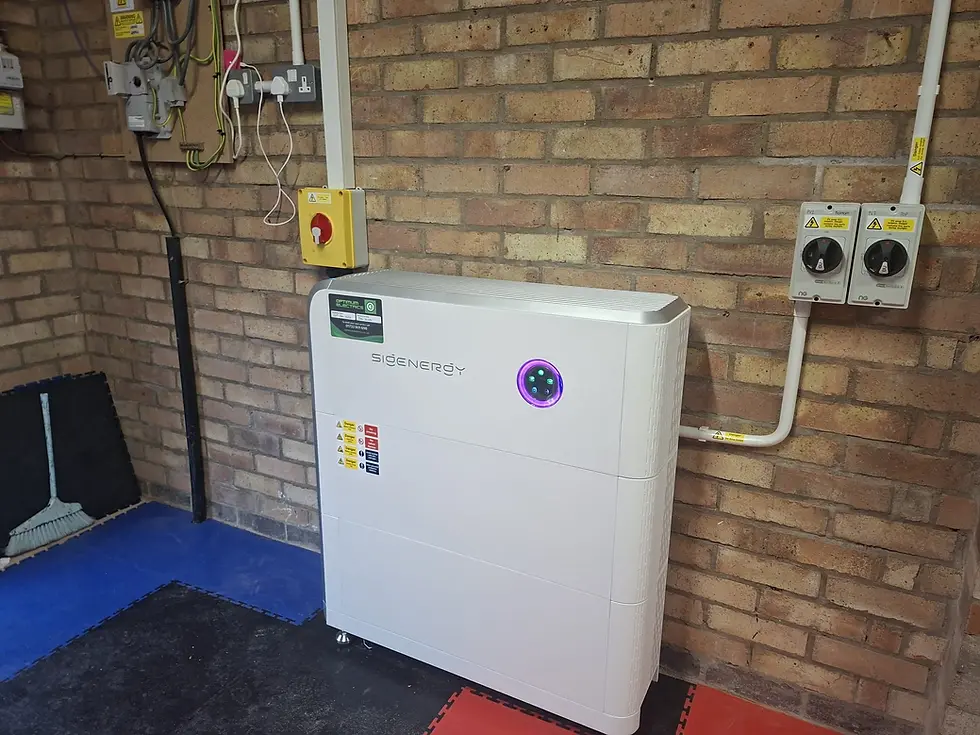

Inside the property, we installed a 12kW Sigenergy Hybrid Inverter alongside two 10kWh Sigenergy batteries, providing a total of 20kWh of battery storage. This intelligent system automatically manages the flow of electricity between the solar panels, battery storage, the home and the National Grid, helping the homeowner use more of the energy they generate.
To complete the installation, all-black bird protection meshing was fitted around the perimeter of the array, helping to prevent birds from nesting beneath the panels and protecting the system for years to come.
As with every Optimum Electrics solar installation, the system was fully commissioned and tested before the homeowner received all relevant certification, warranties and guidance on monitoring their new renewable energy system.
Why We Chose These Products
AIKO Neostar 3S Generation 3 Solar Panels
AIKO's Generation 3 Neostar panels are among the highest-performing residential solar panels available today. Their exceptional efficiency allows homeowners to generate more electricity from the available roof space, while the premium all-black finish creates a modern, understated appearance.
Sigenergy Home Energy System
The Sigenergy ecosystem seamlessly integrates solar generation and battery storage into one intelligent platform. Through a single, easy-to-use app, homeowners can monitor energy production, battery charge levels and household consumption in real time, allowing them to optimise how and when their renewable energy is used.
Fastensol Roof Mounting System
The Fastensol mounting system provides a strong, reliable and long-lasting fixing solution while maintaining the clean aesthetics of the all-black solar array. Combined with bird protection meshing, the installation is built to deliver reliable performance with minimal maintenance.
Results & Benefits
The completed installation now provides the homeowner with:
Lower electricity bills through self-generated renewable energy.
20kWh of battery storage for greater energy independence.
Increased self-consumption of solar energy throughout the day and into the evening.
Reduced reliance on the National Grid.
A premium all-black solar array that complements the property's appearance.
Long-term protection for the installation with bird protection meshing.
A future-ready renewable energy system designed to adapt to changing household energy requirements.
Conclusion
This 9.12kW Solar PV and Battery Storage installation demonstrates how combining high-efficiency solar panels with substantial battery storage can transform the way a home generates and uses electricity. By pairing AIKO Neostar 3S Generation 3 solar panels with 20kWh of Sigenergy battery storage, Optimum Electrics delivered a high-performance system that will help the homeowner reduce energy costs, increase energy independence and make the most of clean, renewable energy for years to come.
Whether you're looking to install solar panels, battery storage or a complete home energy management system, Optimum Electrics can design a bespoke solution tailored to your property, your energy usage and your future plans.
Optimum Electrics is MCS, NICEIC and HIES accredited and an Octopus Energy Trusted Partner. We design and install solar, battery storage and EV charging systems across Cambridgeshire, Peterborough, Cambridge, Bedford, Northampton and Leicester.
Thinking about solar for your home? Get in touch for a free, no-obligation site survey.
